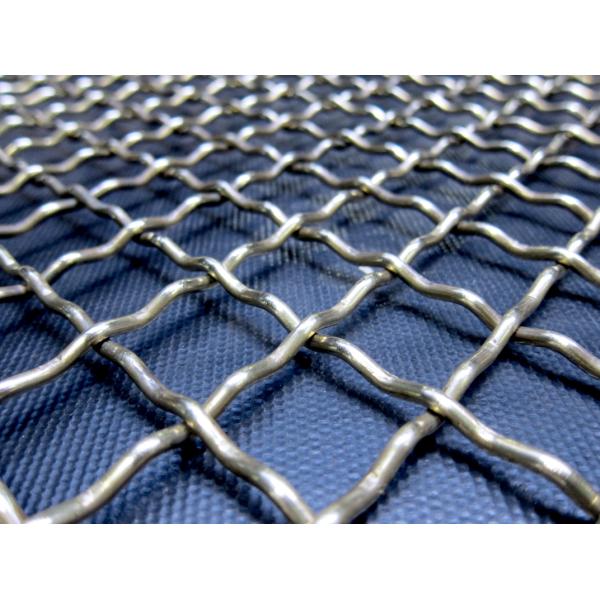

Vibrating wire mesh screens crimped wire mesh,Crimped Wire Mesh sand gravel crusher hooked vibrating sieve screen mesh
Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.
Crimped wire mesh screen (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,flat mesh, etc.).
Materials
- Stainless Steel Wire
- Brass wire
- High carbon steel wire
- Galvanized iron wire
Weaving Patterns: Weaving after crimping, double crimp, flat top, inter crimp, rectangular slot and long slot.
Applications
- Vibrating tray screens
- High pressure filters
- Cooling circuit filters
- Grids and trays for thermal treatments
- Decoration
| Stainless Steel Crimped Wire Mesh |
| Wire Gauge(SWG) | Wire Diameter(mm) | Mesh/Inch | Aperture(mm) | Weight(kg) |
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
| Stainless Steel Wire Mesh |
| Mesh/inch | Wire Diameter
(mm) | Aperture
(mm) | | Mesh/inch | Wire diameter
(mm) | Aperture
(mm) |
| 2mesh | 1.80 | 10.90 | | 60mesh | 0.15 | 0.273 |
| 3mesh | 1.60 | 6.866 | | 70mesh | 0.14 | 0.223 |
| 4mesh | 1.20 | 5.15 | | 80mesh | 0.12 | 0.198 |
| 5mesh | 0.91 | 4.17 | | 90mesh | 0.11 | 0.172 |
| 6mesh | 0.80 | 3.433 | | 100mesh | 0.10 | 0.154 |
| 8mesh | 0.60 | 2.575 | | 120mesh | 0.08 | 0.132 |
| 10mesh | 0.55 | 1.990 | | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.50 | 1.616 | | 150mesh | 0.065 | 0.104 |
| 14mesh | 0.45 | 1.362 | | 160mesh | 0.065 | 0.094 |
| 16mesh | 0.40 | 1.188 | | 180mesh | 0.053 | 0.088 |
| 18mesh | 0.35 | 1.060 | | 200mesh | 0.053 | 0.074 |
| 20mesh | 0.30 | 0.970 | | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | | 350mesh | 0.03 | 0.042 |
| 50mesh | 0.19 | 0.318 | | 400mesh | 0.025 | 0.0385 |
| Width of Stainless Steel Wire Mesh: 0.6m-1.5m |
About our company
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
