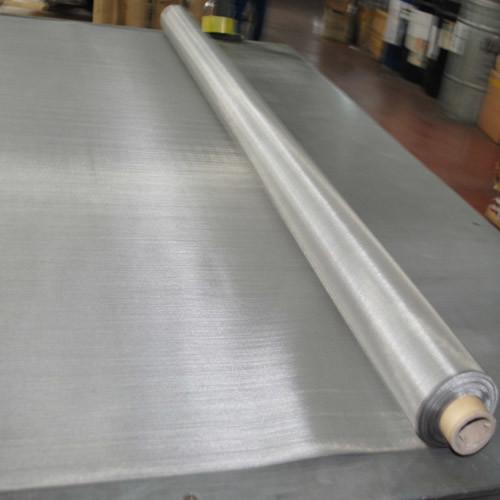

100 Mesh, 0.10 mm Wire Dia., SS304/304L/316/316L Woven Wire Mesh,Twill Reverse Dutch Stainless Steel Wire Mesh

  • 1
  • 2

Place of Origin : Hengshui,China

MOQ : 1 roll

Price : 7-200 us dollar per square meter

Supply Ability : 3000 rolls per month

Packaging Details : Inside waterproof paper,outside wooden carton

Material : Stainless steel wire

Mesh size : 2 mesh-500meshes

Wire diameter : 0.018mm-2.05mm

Method : Hot Dipped or Electro Galvanized Bef.or Afterweave

Width : 0.5-6.5m

Length : 30m or customized

Feature : Wear-Resisting,Heat-Resisting,Acid-Resisting

HS code : 73144000

Contact Now

100 Mesh, 0.10 mm Wire Dia., SS304/304L/316/316L Woven Wire Mesh,Twill Reverse Dutch Stainless Steel Wire Mesh

Product Description

•Product Description:

Stainless steel wire cloth is made by kind of stainless steel wire,offer flat surface, firm structure and good integrity.

•Materials of stainless steel wire cloth:

stainless steel AISI 201,304, 304L, 316, 316L, 310, 430,etc.

•Features of stainless steel wire cloth:

Stainless wire cloth we supply can offer excellent acid resistance, alkali-resistance, heat-resistance, corrosion resisting and wear resistance. Also high tensile strength and good antirust property.

•Weaving forms of stainless steel wire cloth:

Plain Dutch Weave, Twilled Dutch Weave, Reverse Dutch Weave and Five-Heddle Weave.

•Application of stainless steel wire cloth:

Stainless wire cloth can be widely used in these fields: mining, chemical industries, petroleum industry, environment protection, food industry, paper-making, electronic industry, pharmaceutical industry, machine producing and other industries.

•Packaging :Wooden box

•Our Service:

Materials certification

Customized size

•Specifications:

Stainless Steel Woven Wire Mesh Material
Stainless steel wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.

SS 430: Non Nickel and have magnetic;
SUS 202: non-magnetic, low anti-corrosion resistence;
SUS 304/304L: low-magnetic, good anti-corrosion resistence;
SUS 316/316L: low-magnetic, better anti-corrosion resistence;
SUS 310S: anti-oxidization,anti-corrosive and high temperature resistence

Stainless Steel Woven Wire Mesh Count

SUS 202/310s sutiable for mesh count from 1 to 100( plain weave);
SUS 304/304L suitable for mesh count from 1 to 400(plain/dutch weave);
SUS 316/316L 430 suitable for mesh count from 1 to 600(plain/twill/dutch weave .

Stainless Steel Woven Wire Mesh Specification
Plain Weave Technical Data
Meshes Per Linear Inch Wire Diameter Aperture Size Open Area, %
Inches mm Inches mm
1 0.135 3.5 0.865 21.97 74.8
1 0.120 3.0 0.880 22.35 77.4
1 0.105 2.5 0.895 22.73 80.1
1 0.080 2.0 0.920 23.36 84.6
3/4" 0.120 3.0 0.630 16.00 70.5
3/4" 0.080 2.0 0.670 17.01 79.8
2 × 2 0.120 3.0 0.380 9.65 57.8
2 × 2 0.105 2.5 0.395 10.03 62.4
2 × 2 0.080 2.0 0.420 10.66 70.6
2 × 2 0.063 1.6 0.437 11.10 76.4
2 × 2 0.047 1.2 0.453 11.50 82.1
3 × 3 0.080 2.0 0.253 6.42 57.6
3 × 3 0.063 1.6 0.270 6.85 65.6
3 × 3 0.047 1.2 0.286 7.26 73.6
4 × 4 0.080 2.0 0.170 4.31 46.2
4 × 4 0.063 1.6 0.187 4.75 56.0
4 × 4 0.047 1.2 0.203 5.15 65.9
5 × 5 0.047 1.2 0.153 3.88 58.5
5 × 5 0.041 1.0 0.159 4.01 63.2
6 × 6 0.063 1.6 0.104 2.64 38.9
6 × 6 0.047 1.2 0.120 3.04 51.8
6 × 6 0.035 0.9 0.132 3.35 62.7
8 × 8 0.063 1.6 0.062 1.57 24.6
8 × 8 0.047 1.2 0.078 1.98 38.9
8 × 8 0.035 0.9 0.090 2.28 51.8
8 × 8 0.032 0.8 0.093 2.36 55.4
8 × 8 0.028 0.7 0.097 2.46 60.2
10 × 10 0.047 1.2 0.053 1.34 28.1
10 × 10 0.035 0.9 0.065 1.65 42.3
10 × 10 0.032 0.8 0.068 1.27 46.2
10 × 10 0.025 0.63 0.075 1.90 56.3
12 × 12 0.041 1.0 0.042 1.06 25.4
12 × 12 0.035 0.9 0.048 1.22 33.2
12 × 12 0.032 0.8 0.051 1.29 37.5
12 × 12 0.028 0.7 0.055 1.39 43.6
12 × 12 0.023 0.58 0.060 1.52 51.8
14 × 14 0.032 0.8 0.039 1.52 29.8
14 × 14 0.025 0.63 0.046 0.99 41.5
14 × 14 0.023 0.58 0.048 1.22 45.2
14 × 14 0.020 0.5 0.051 1.30 51.0
16 × 16 0.028 0.7 0.035 0.89 30.5
16 × 16 0.023 0.58 0.040 1.01 39.9
16 × 16 0.018 0.45 0.045 1.14 50.7
18 × 18 0.020 0.5 0.036 0.91 41.1
18 × 18 0.018 0.45 0.038 0.96 48.3
20 × 20 0.023 0.58 0.027 0.68 29.2
20 × 20 0.020 0.5 0.030 0.76 36.0
20 × 20 0.018 0.45 0.032 0.81 41.0
20 × 20 0.016 0.40 0.034 0.86 46.2
24 × 24 0.014 0.35 0.028 0.71 44.2
28 × 28 0.010 0.25 0.026 0.66 51.8
30 × 30 0.013 0.33 0.020 0.50 37.1
30 × 30 0.012 0.30 0.021 0.53 40.8
35 × 35 0.012 0.30 0.017' 0.43 33.8
35 × 35 0.010 0.25 0.019 0.48 42.4
40 × 40 0.014 0.35 0.011 0.28 19.3
40 × 40 0.012 0.30 0.013 0.33 27.4
40 × 40 0.010 0.25 0.015 0.38 36.0
40 × 40 0.0095 0.24 0.016 0.40 38.4
50 × 50 0.009 0.23 0.011 0.28 30.3
60 × 60 0.0075 0.19 0.009 0.22 30.5
70 × 70 0.0065 0.17 0.008 0.20 29.8
80 × 80 0.0070 0.18 0.006 0.15 19.4
80 × 80 0.0055 0.14 0.007 0.17 31.4
90 × 90 0.0055 0.14 0.006 0.15 25.4
100 × 100 0.0045 0.11 0.006 0.15 30.3
120 × 120 0.0040 0.10 0.0043 0.11 26.6
120 × 120 0.0037 0.09 0.005 0.12 30.7
150 × 150 0.0026 0.066 0.0041 0.10 37.4
165 × 165 0.0019 0.048 0.0041 0.10 44.0
180 × 180 0.0023 0.058 0.0032 0.08 33.5
180 × 180 0.0020 0.050 0.0035 0.09 41.1
200 × 200 0.0020 0.050 0.003 0.076 36.0
200 × 200 0.0016 0.040 0.0035 0.089 46.0
220 × 220 0.0019 0.048 0.0026 0.066 33.0
230 × 230 0.0014 0.035 0.0028 0.071 46.0
250 × 250 0.0016 0.040 0.0024 0.061 36.0
270 × 270 0.0014 0.040 0.0022 0.055 38.0
300 × 300 0.0012 0.030 0.0021 0.053 40.1
325 × 325 0.0014 0.040 0.0017 0.043 Product Tags:
