ultra fine square 25 50 100 150 200 300 400 500 micron 304 316L stainless steel woven wire mesh

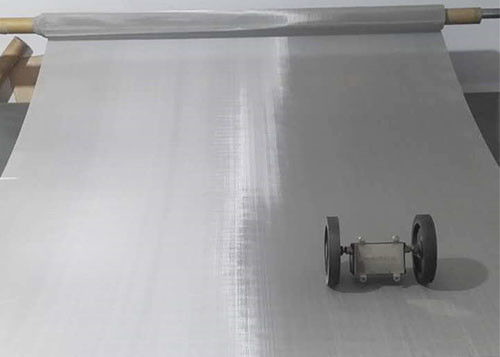

Stainless steel wire mesh
Weave Styleplain weave
Material
304, 316, 316L or customized
Weave style
plain weave, twill weave and dutch weave
Type
weave wire mesh, wire cloth, filter elements
Application
screen, filters, woven wire mesh
Technique
woven
Mesh Count
1x1-635x635mesh/inch
Thread Diameter 0.008-0.08inch (0.0203-2.03mm)
Mesh Opening0.0008-0.92inch(0.0203-23.37mm)Commonly Roll details
30m length X 1m width (length and width can be customized)
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 30-635mesh.
Common Width:0.914m,1.0m,1.22m,1.5m,Special requirement can be customized.
Characteristics of stainless Steel Wire Mesh:
Acid-resisting,alkali-resisting and anti-corrosion
High strength,good tension toughness and abrasion performance,durable in use.
resistance to high temperature oxidation
Highly polished, no need to do any surface treatment,with convenient and simple maintenance.
Woven type
| Stainless Steel Weaving Wire Mesh Dutch Weave |
mesh/inch
(Warp x Weft) | Wire Diameter
(Warp x Weft) |
| mm | inch |
| 8 x 62 | 0.63 x 0.45 | 0.0248 x 0.0177 |
| 10 x 79 | 0.5 x 0.355 | 0.0197 x 0.0140 |
| 12 x 64 | 0.58 x 0.4 | 0.0228 x 0.0157 |
| 14 x 88 | 0.4 x 0.3 | 0.0157 x 0.0118 |
| 19 x 140 | 0.315 x 0.2 | 0.0124 x 0.0079 |
| 20 x300 | 0.35 x 0.2 | 0.0138 x 0.0079 |
| 24 x 110 | 0.355 x 0.25 | 0.0140 x 0.0098 |
| 25 x 140 | 0.28 x 0.2 | 0.0110 x 0.0079 |
| 30 x 150 | 0.25 x 0.18 | 0.0098 x 0.0071 |
| 35 x 175 | 0.224 x 0.16 | 0.0088 x 0.0063 |
| 40 x 200 | 0.2 x 0.14 | 0.0079 x 0.0055 |
| 45 x 250 | 0.16 x 0.112 | 0.0063 x 0.0044 |
| 50 x 250 | 0.14 x 0.11 | 0.0055 x 0.0043 |
| 55.5 x 280 | 0.14 x 0.1 | 0.0055 x 0.0039 |
| 65 x 330 | 0.11 x 0.08 | 0.0043 x 0.0031 |
| 70 x 350 | 0.11 x 0.08 | 0.0043 x 0.0031 |
| 70 x 385 | 0.11 x 0.07 | 0.0043 x 0.0028 |
| 78 x 700 | 0.11 x 0.08 | 0.0043 x 0.0031 |
| 80 x 400 | 0.1 x 0.065 | 0.0039 x 0.0026 |
| 80 x 600 | 0.1 x 0.06 | 0.0039 x 0.0024 |
| 80 x 800 | 0.15 x 0.04 | 0.0059 x 0.0016 |
| 81 x 780 | 0.1 x 0.07 | 0.0039 x 0.0028 |
| 90 x 550 | 0.12 x 0.05 | 0.0047 x 0.0020 |
| 100 x 800 | 0.08 x 0.04 | 0.0031 x 0.0016 |
| 120 x 1100 | 0.07 x 0.04 | 0.0028 x 0.0016 |
| 165 x 1400 | 0.07 x 0.04 | 0.0028 x 0.0016 |
| 200 x 1400 | 0.07 x 0.04 | 0.0028 x 0.0016 |
| 200 x 1800 | 0.05 x 0.031 | 0.0020 x 0.0012 |
| 250 x 2000 | 0.05 x 0.03 | 0.0020 x 0.0012 |
| 325 x 2300 | 0.035 x 0.025 | 0.0014 x 0.0010 |
| 400 x 2800 | 0.03 x 0.02 | 0.0012 x 0.0008 |
Features:
Corrosion resistance.
Anti-acid and alkai
Anti-high temperature.
Good filter performance.
Long using life
Applicatiosn:
In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.
Data sheet of the wire mesh
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot |
| Inch | MM | Inch | MM |
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
